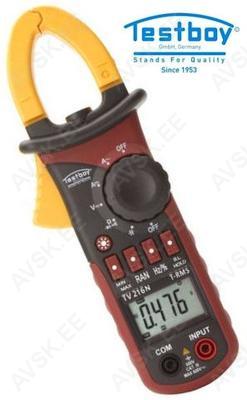

Ampertangid Testboy TV 216 N

AV00007930
228,80 €
SVEA järelmaks
12,42 € kuus, 21 kuud, sissemakse 11,44 € (5%)

TESTBOY TV 216N Display: 4 digit LCD, 6600 Overload Category: CAT III 600 V Dimension: 220 × 75 × 35 mm Weight: 340 g Scope of Delivery: 1 × test lead 3 × 1.5 V, AAA batteries, LR03 1 × carrying case Power Supply: 3 × 1.5 V Diode Test: Test current ~ 1 mA, Test voltage ~ 3.3 V DC voltage: 600 m, 6, 60, 600 V DC current: 60 A, 600 A AC V: 600 mV, 6, 60, 600 V, 40 to 400 Hz AC Strom: 60 A, 600 A, 40 to 400 Hz AC Current - Accuracy: ± 3.0 % +10 digits AC Current - Highest Resolution: 10 mA DC Current - Highest Resolution: 10 mA AC Voltage - Accuracy: ± 1.5 % +10 digits to 600 mV / ± 1.2 % +5 digits to 60 V / ± 1.5 %+10 digits to 600 V AC Voltage - Highest Resolution: 100 μV AC Voltage: 10 MΩ DC Voltage - Accuracy: ± 0.8 % +3 digits to 60 V / ± 1.0 %V +5 digits to 600 V DC Voltage - Highest Resolution: 100 μV DC Voltage: 10 MΩ Frequency by clamp: 600 Hz, 1 kHz, > 1 A AC rms Frequency by clamp - Accuracy: ± 1.5 % +5 digits to 1 kHz Frequency by clamp - Highest Resolution: 100 mHz Frequency by plugs: 600 Hz, 6 kHz, 10 kHz, > 0.2 V AC rms Frequency by plugs - Accuracy: ± 1.5 % +5 digits to 10 kHz Frequency by plugs - Highest Resolution: 100 mHz Sampling rate: 10 to 95 %, ± 3.0 %, > 1 A AC rms Sampling rate - Frequency range: 10 Hz to 1 kHz Sampling rate - Capacitance measurement: Up to 60 mF Resistance - Accuracy: ± 1.2 % +2 digits to 6 MΩ ± 2.0 % +5 digits to 60 MΩ Resistance - Highest Resolution: 100 MΩ Diodetest - Resolution: 1 mV Diodetest - Continuity test: Audible continuity signal below 30 Ω
